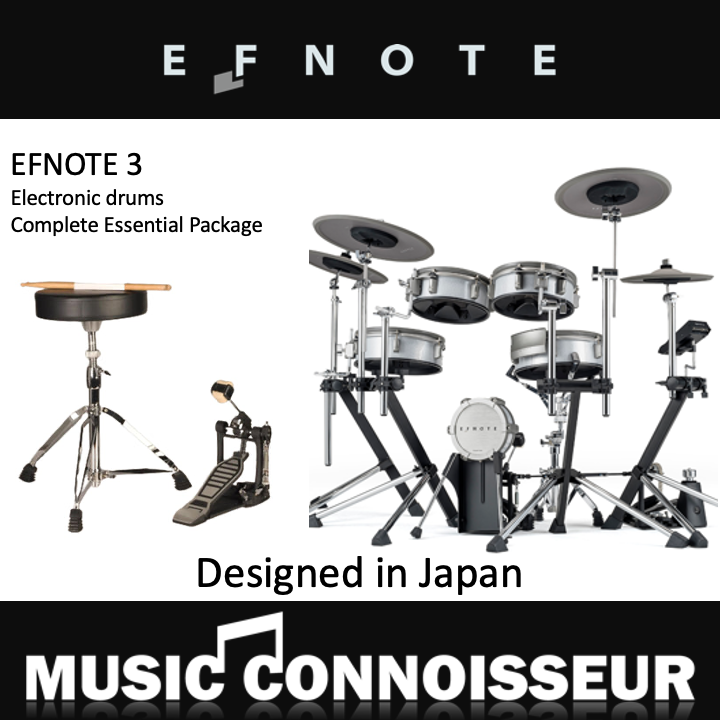

EFNOTE 3 Complete Essential Package

3-Zone Crash / Ride Cymbals

• Elegant "warm-gray" colored cymbals
• Fine engraved surface
• Weight simulation with thin edge for appropriate striking feel
• 360° flat sensing with multi-sensor
• 360° choke supported
• Full 3-zone Crash/Ride cymbals (bow/edge/cup)
• 16" Ride, 14" Crashes, 12" Hi-hat

Monocoque Drum Shells

• Elegant sparkling finish
• Independent lug design
• Monocoque shell structure for stiffness and durability
• Hot-spot-less sensing with multi-sensor
• Colored hoop rubber
• Double-layered mesh drum head
• 2-zone (head/rim)
• 12" Snare, 10" Tom 1/2, 12" Tom 3

Suspended Tom Mount

• Softer striking feel and less rebound
• Anti-crosstalk vibration

Snare Side-Rim

• Easy to play side-sticks
• Accurate sensing
• Low acoustic noise
• No need to switch function between rim-shot and side-sticks

Comfy Strike-Feel Kick

• Elegant sparkling finish
• Comfy strike-feel fabric head
• Dual-sensor stable sensing for single/double beater(s)
• Angle-adjustable kick pedal attachment
• Rugged spars with rubber/spike tips

Tru-Motion™ Hi-Hat

• Inertia weight simulation technology provides ideal pedal feeling
• Precision optical sensing perfectly responds to drummer’s high-speed footwork
• Open-close stroke gap and spring tension adjustment
• Smooth continuity from tight-closed to full-open sound

λ (Lambda) Tripods

• Advanced design
• Easy and flexible setup
• Perfect stability

Full-Scale Acoustic Sound

• Tru-Aco™ sound technology provides so real drum/cymbal sound
• Stereo samples with wide dynamic range for all acoustic instruments
• Minimum pre-processed, uncompressed waveforms for maximum fidelity
• Natural and smooth continuity roll sounds

ELISE™ Sensing Processor

• Capturing drummer's intentions from each stroke
• Low latency, wide dynamic-range, consistent and stable sensing
• Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads

For Recording

• USB 8-ch individual audio outputs with Mac / Windows (ASIO)
• USB 2-ch audio inputs for playback
• Analog 4-ch audio outputs
• USB MIDI in/out with individual MIDI channels
• MIDI output (5-pin DIN)
• On-board drum recording (5 songs)

For Small Gigs

• Setlist feature enables you to configure kit order with tempo for each song
• Kick and Snare can be output individually with analog 4-ch outputs
• Click and Audio-In can be assigned only for headphones
• High-power headphones output
• MIDI output (5-pin DIN)

For Training

• Multi-function metronome with beat LED indicator
• Built-in metronome speaker for daily training without headphones
• On-board recording function (5 songs)
• Stroke Analyzer
• Rhythm Box feature provides over 90 basic drum beats

Stroke Analyzer

• "Stroke Scope" displays your strike points on time-line
• "Accuracy Score" estimates your strike accuracy

Sound Edit

• Tuning, Muffling, 2-band EQs for each pad
• Pad layer function can overlay two sounds
• User Inst Library enables you to store 50 customized instruments
• On-board reverb
• Dedicated level control screen

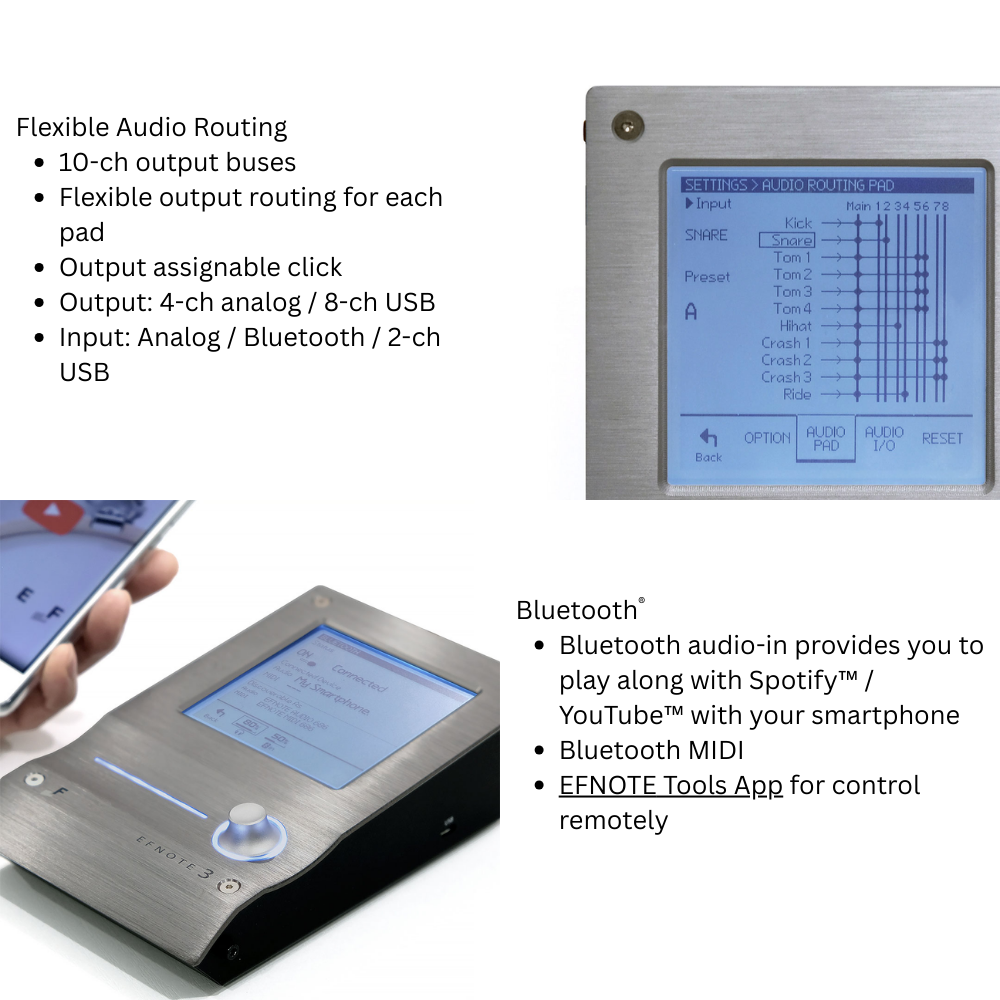

Flexible Audio Routing

• 10-ch output buses
• Flexible output routing for each pad
• Output assignable click
• Output: 4-ch analog / 8-ch USB
• Input: Analog / Bluetooth / 2-ch USB

Bluetooth®

• Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
• Bluetooth MIDI
