FEATURES

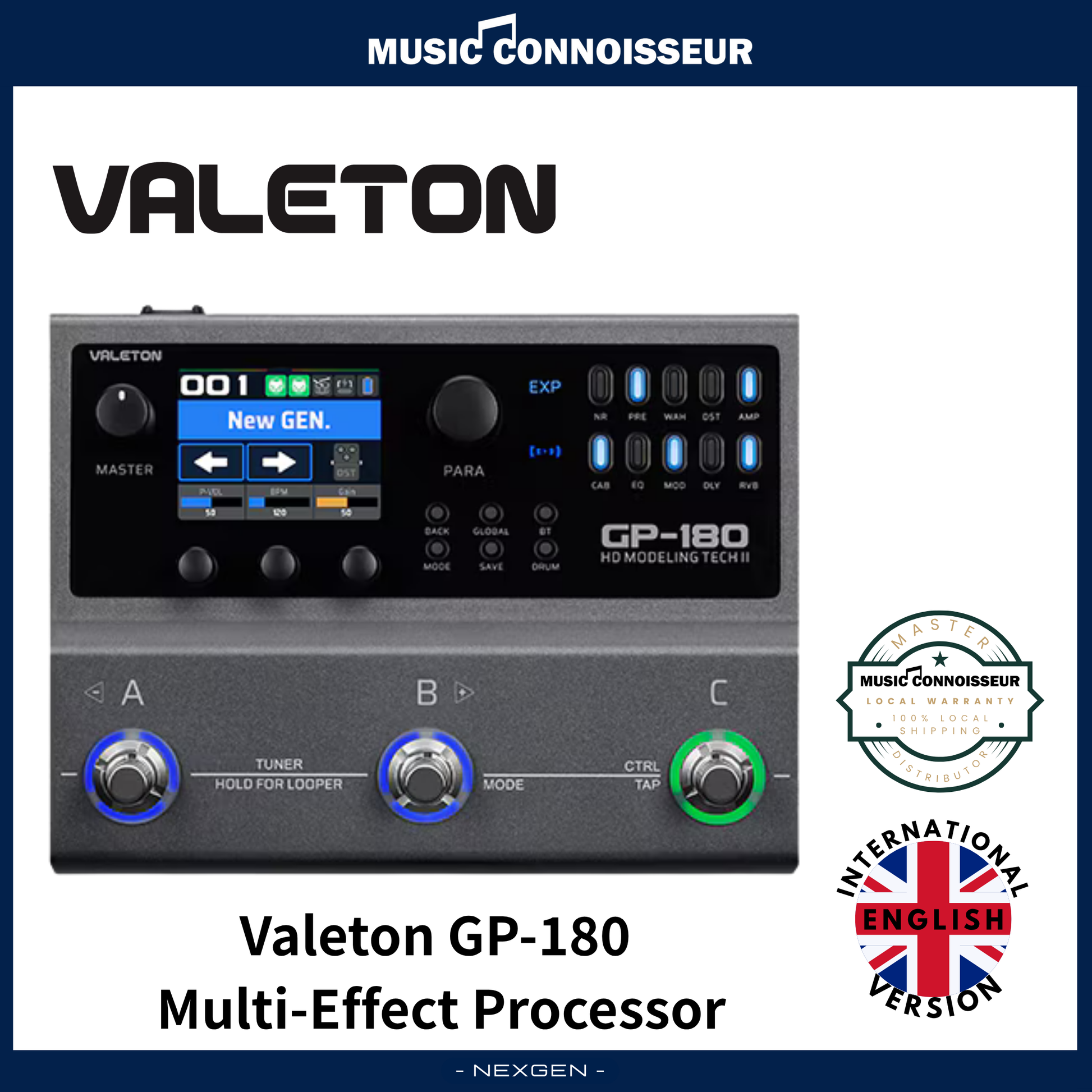

✪ Three-footswitch style digital multi-effects processor
✪ Built-in over 200 premium effects based on second-generation HD modeling technology
✪ Supports loading third-party cabinet IR files, 1024/2048 sampling points, with a maximum storage of 20 files
✪ Latest SnapTone technology supports NAM (Neural Amp Modeler) file conversion
✪ SnapTone module comes with 50 curated files, with a maximum storage of 100 files
✪ 200 patch slots (100 factory patches)
✪ Up to 12 modules can be used simultaneously in the effects chain, with full module
order flexibility
✪ Knob + button controls for convenient interaction
✪ Direct module access buttons for quick effect control
✪ Dedicated CTRL/TAP footswitch function
✪ Supports analog/DSP bypass switching
✪ Newly designed interactive interface covering all functions
✪ Accurate and responsive tuner with cent display and multiple tuning templates
✪ Supports drum machine function with over 100 built-in drum patterns
✪ Supports Looper with up to 180 seconds of recording time
✪ Compatible with expression pedal and external footswitches
✪ Supports stereo balanced/unbalanced output
✪ 3.5mm TRRS headset output
✪ 6-in/4-out audio interface functionality, compatible with Win/Mac/iOS/Android
✪ Supports USB/BT/6.35mm TRS MIDI control
✪ Supports as a MIDI Commander
✪ Supports BT wireless connection to smartphones for use with iOS/Android companion editing apps; apps include 100 drum machine rhythms
✪ User-friendly Win/Mac companion software for file management and firmware updates
✪ Compact and rugged metal chassis
✪ Supports built-in battery power with a battery life of over 6 hours (screen brightness level II)
✪ Powered/charged via 9V DC or 5V USB
✪ Supports USB fast charging and reverse power supply
SPECIFICATIONS
Sampling Precision: 24-bit
Sampling Rate: 48kHz
SNR: 110dB
Module: 12 modules can be used simultaneously
Patch Memory: 200 Patch slots, 100 Factory Patches
BT Wireless: 5.0 Dual-Mode (BLE & audio)

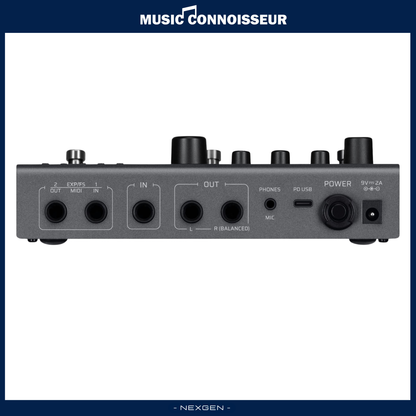

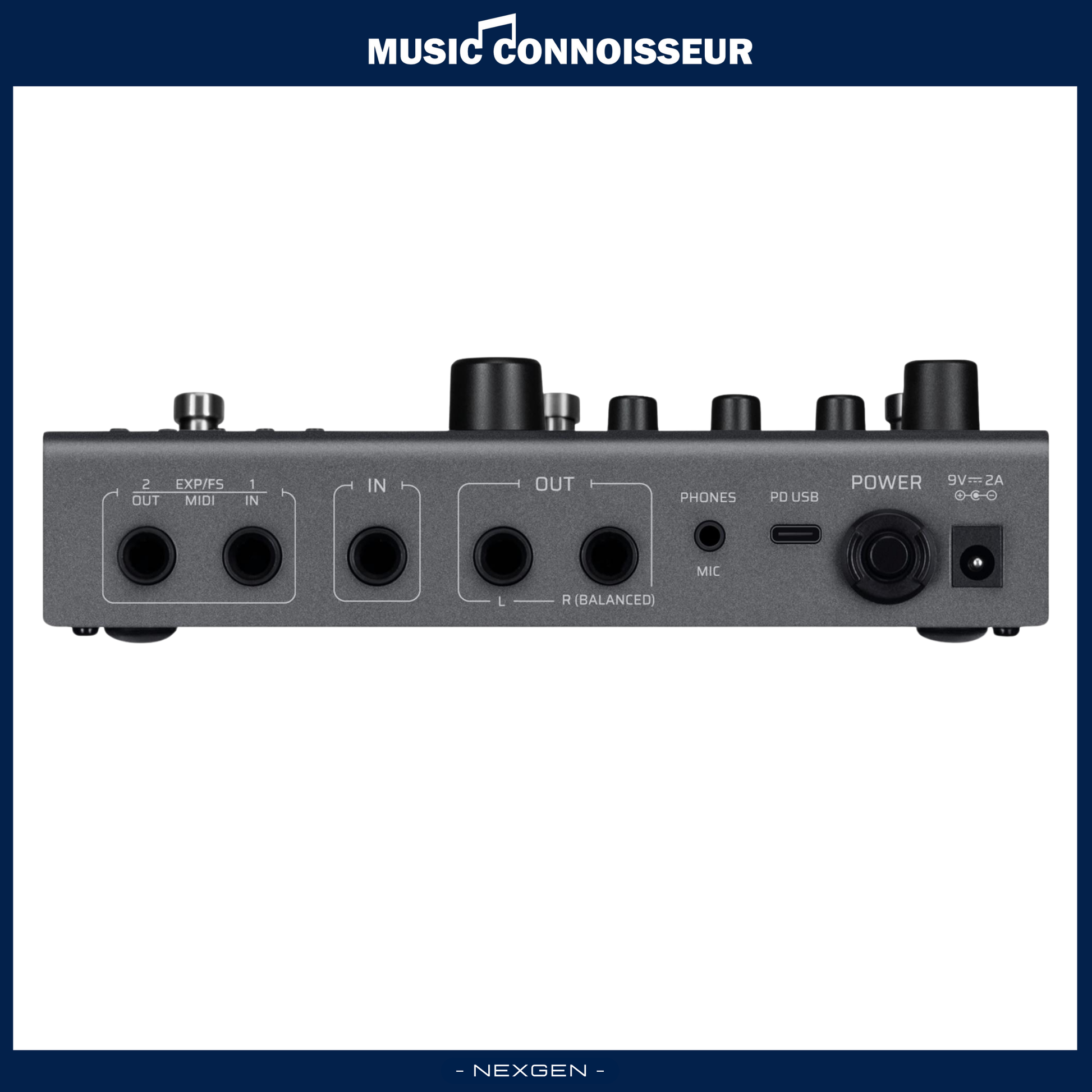

Analog Input Connection
IN: 1/4" (6.35mm) TS jack, 1M Ohms
EXP/FS: 2 x 1/4" (6.35mm) TRS jack
Analog Output Connection
OUT (L): 1/4" (6.35mm) TS jack, 1k Ohms
OUT (R): 1/4" (6.35mm) TRS jack, 1k Ohms
PHONES/MIC: 1/8" (3.5mm) TRRS jack, 22 Ohms
Digital Connection
USB Port: USB 2.0 Type-C Port
MIDI IN: 1/4" (6.35mm) TRS jack, compatible with EXP/FS jack 1
MIDI OUT/THRU: 1/4" (6.35mm) TRS jack, compatible with EXP/FS jack 2
Size and Weight
Dimensions: 181mm (W)× 139mm (D)× 52mm (H)
Unit Weight: 843g
Battery
Capacity: 3000mAh/3.7V
Charging: Both the DC 9V and USB ports support charging
Power
DC Power Requirements: DC 9V (center negative), 5.5×2.1mm plug
≥1.5A (Min. operating current: 1A; Charging current : 2A)
USB-C Power Requirements: Type-C, DC 5V
≥1A (Min. operating current: 1A; PD fast-charging current: 3A; Reverse charging current: 1A)
